Yamaha FZ750 Restoration - Clip-ons (handlebars)

 I got a bent one!

So the left clip-on has taken a bruising at some stage, not to mention the rust. I initially thought it might be able to be straightened but it had flattened the tube where it was bent and would never be right however much you looked at it. Secondhand ones are few and far between, and expensive, and I didn't want to risk getting another bent one.

On closer inspection of the offending item, you can see where they are originally welded to the cast clamp. With a bit of careful drilling and jiggery-pokery, we should be able to get the old steel tube off the clamp itself. It was pretty solid but gave way in the end.

I cut off the bad section and placed what was left in the lathe to take the outer diameter down enough to remove the threaded section that holds the bar end weights. Eureka!

All that was left to do was to go to the steel shop and pick up a length of 22mm pipe with a 2mm wall thickness. Pretty common, one would hope. Not in Australia it would seem, it's no longer available.

I then ordered some "Pipe Furniture" sections which were supposed to be 22mm O.D., but even they turned out to be 21mm. Bridgey pointed out the old handlebars on the ZXR project bike (more on that later) and it gave me an idea. A set of straight drag bars should give me the dimensions I needed. Then I remembered a load of factory-seconds bars I bought and stored a while ago. I already had the correct material in stock!

So this is how it looked. The end is pitted with rust because Yamaha didn't paint them right to the end. For obvious reasons on the throttle side, I guess, and then they just wanted them to look the same.

The next two pics show where they were welded originally. I drilled through but it still took some getting off.

So here's a brand new set of "seconds" handlebars and they will be sacrificed to make new clip-ons.

The new piece of bar was roughly cut to length and put in the lathe to true up the ends. Then I used a boring bar to take the internal diameter to make a nice tight fit on the clamp. The same was done for the other end to allow the threaded section to slide in.

It's now a nice tight fit on the stub of the clamp. I just need to drill two 6mm holes to match where the old welds were.

On the other end it was much the same although I made it slightly looser so I could retrieve the threaded section more easily if need be. Holes were drilled here too, and then it was time to clean off all paint and get ready for welding.

Holes drilled, and bar-end weight in place to hold the threaded section in the correct position.

I tackled this end first because then I could take the welds down in the lathe before attaching the other end to the fork clamp. With one weld complete I had to make sure the bar-end would screw in completely square. It did.

Then the other end could be attached to the fork clamp. A little filing and rubbing down with wet & dry was required to make everything smooth.

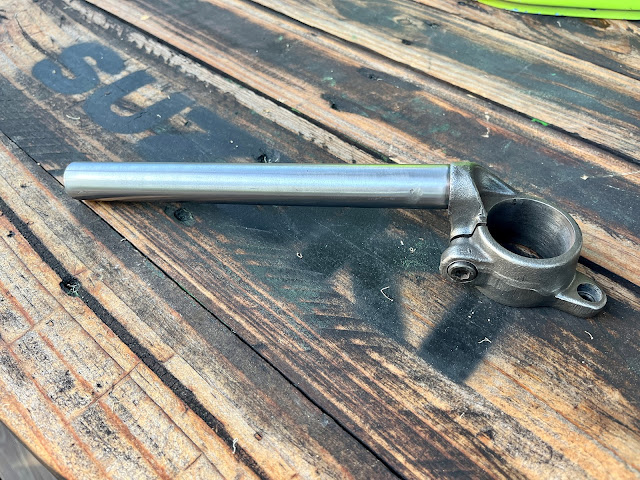

Starting to take shape. Time to grab the file and finish this baby off!

Looks like a bought one.

A drop of the old satin black should have this ready to fit. Better check the right one...

Another job jobbed.

More soon...
